Double Scissor Lift Table
500 to 6,000 lb capacity
48″ to 72″ lift

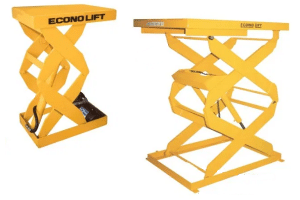

 Double Scissor Lift Table


Double scissor lift – 500 to 6,000 lb scissor lift capacity

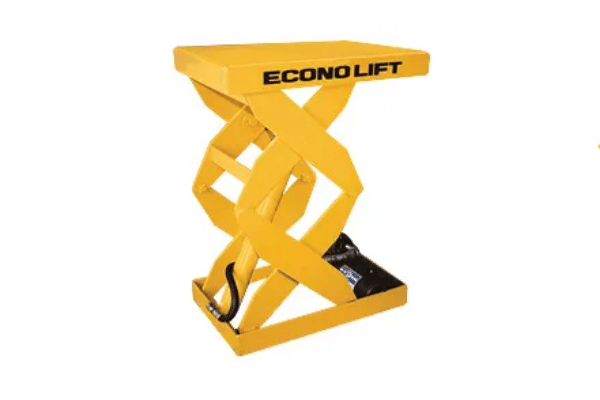

Double Scissor Lift Table



The Double Scissor Lift Table is designed to provide approximately double the vertical lift of a single scissor lift table with the equivalent length frame. These units achieve maximum travel while maintaining a small footprint.

  • Makes parts easily reachable
  • Prevents back strain
  • Increases productivity.


CAPACITY500/1,000/1,500/2,000/3,000/4,000/5,000/6,000 lbs

PLATFORM SIZES:  24″ wide x 36″ long to 72″ wide x 72″ long

BASE SIZES:  Standard 24″, 36″, 48″ wide x 36″, 48″ long

TRAVEL:  48″, 72″ vertical travel

LOWERED HEIGHT: 12″ & 18″

SAFETY: Velocity fuse is standard on each cylinder
Heavy duty hydraulic cylinders – chrome plated rod with polyurethane seals

POWER SUPPLIES:

A/C 110/1/60 volt (standard) – Hand or foot operated
A/C 460/575/3/60 volt (optional) – Hand or foot operated

Air/Hydraulic – Foot operated, hand operated available
– Internally mounted
– Easily accessible for maintenance or repair
– Motor: Single phase 1 h.p. and three phase 1-1/2 h.p. hand or foot operated standard

MAINTENANCE:

Hinged table top provides easy access to power unit and cylinders
Self lubricated bronze bushings on all wear points

DOUBLE SCISSOR LIFT OPTIONS:

• Oversized lift table platforms
• Beveled edges for pit mounting
• Eye-bolts for pit mounting
• Rotating tops
 – spring detents
 – manual detents
• Roller conveyor, Ball transfer tops
• Bellow safety skirting
• Safety tape switch
• Semi-portable
• Portable


Light Duty Double Scissor Lift Tables

Econo Lift - Light Duty Double scissor lifts

Standard 24″ Wide Base Double Scissor Lift Tables

Econo Lift Double Lift 48" Table

36″ Wide Base Double Scissor Lift Tables

36" wide double scissor lift

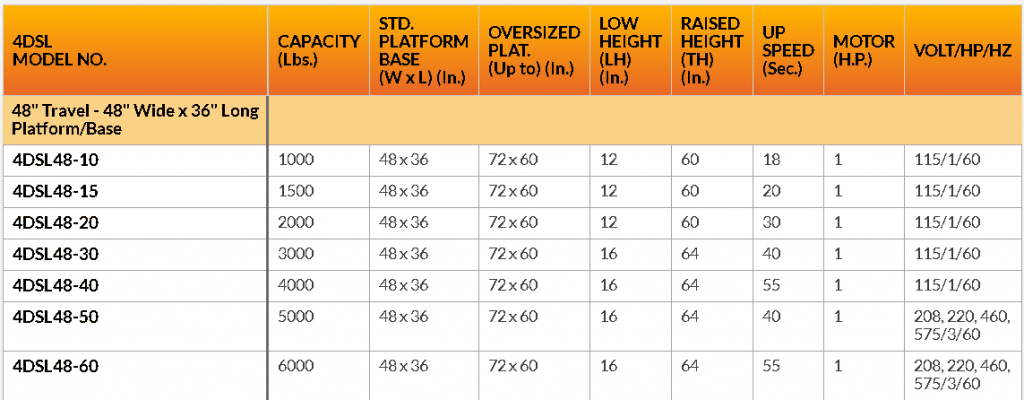

48″ Wide Base Double Scissor Lift Tables

48" wide double scissor lift

FOR MORE INFORMATION

TO REQUEST A QUOTE CONTACT LIFTWAY AT 1-800-543-8929 OR CLICK THE “Get Quote” BUTTON
Be sure to ask about availability for all products
