Light DutyStationary Lifts1,000 & 1,500 lb capacity
Light Duty Stationary Lifts
Stationary Lifts – 1,000 / 1,500 lb capacities
The light duty stationary lifts are designed to make the lifting, handling and positioning of small parts containers easy on the worker’s back. Always have material at ergonomicly convenient work height.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
PLATFORM SIZES
• 24” wide x 36” long
• 24” wide x 48” long
BASE SIZES
• 24” wide x 36” long
• 24” wide x 48” long
TRAVEL
• 24” & 36”
LOWERED HEIGHT
• 5 1/2”
SAFETY
• Velocity safety fuse on all cylinders
POWER SUPPLIES

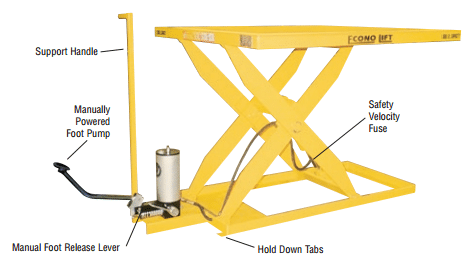

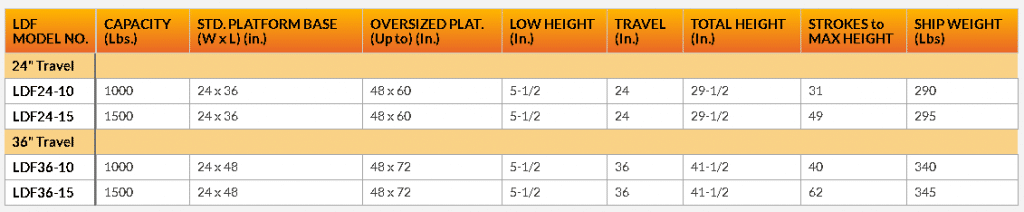

Foot Pump – manually powers lifts, foot release for controlled lowering
A/C 110 volt Hand Control (standard), Foot Control (optional)
Internally Mounted
A/C 460/575/3/60 volt (opt.)
Externally Mounted
Air/Hydraulic Foot operated (standard), Hand operated (optional)
MAINTENANCE
• Hinged top for easy access to power unit and cylinders
• Self lubricated bushings on all pivot points
OPTIONS
• Oversized lift table platforms
• Rotating tops – spring detents
• Bellow safety skirting
• Semi-portable lift table
