ECONO LIFT – Loading Docks

Loading Docks – 5,000/6,000/8,000/10,000/12,000 lbs capacity

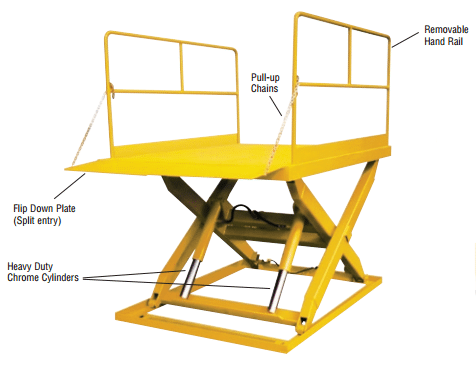

The Loading Dock is designed to eliminate the danger and space requirements associated with a ramp and they improve safety by eliminating manual handling of freight from the truck bed height to the ground. Available in size and lifting capacities to suit a wide range of loading dock applications.

• Makes parts easily reachable
• Prevents back strain
• Increases productivity.

PLATFORM
• Checker plate
• Split plate – 18” high x 68” wide

BASE SIZES
• Standard 67”,68, 89” wide x 92”,93”,114, 138” long

TRAVEL
• 59”

LOWERED HEIGHT OF LOADING DOCK
• Consult chart

POWER SUPPLY

A/C 220/460/575 volt 3 phase (standard*)
* 5,000/6,000 lb. units use 1 h.p. single phase motors
Three phase motors (hand operated controls standard)
10‘ hose and cables
Different horsepower available (ie. 7/10)

Air/Hydraulic (standard) – Foot operated (hand held pendant available)

OPTIONS

• Different platform sizes
• Bellow safety skirting / safety touch bars / beveled edge
• Limit switches / photo eyes
• Eye bolts – for moving lifts easily
• Semi-portable c/w dolly handle

72″ Platform Width Loading Docks

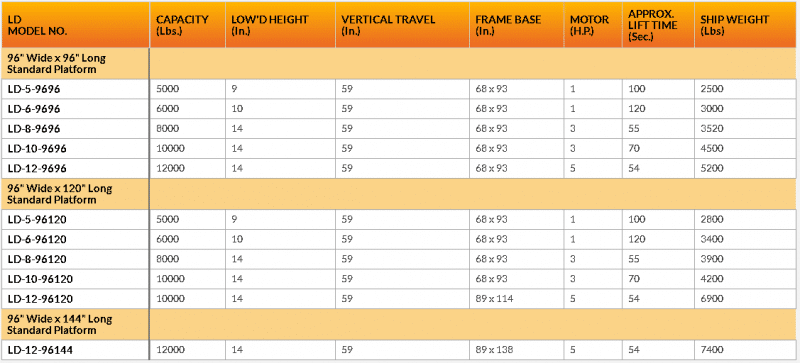

Loading Docks – 96″ Platform Width
