Tilt Tables
1,000 to 6,000 lb capacity
Custom Platform Sizes


 TILT TABLES


1,000 / 2,000 / 4,000 / 6,000 lbs capacity


Econio Lift - Tilt Table

The Tilt Table is designed to be used in a variety of industrial applications when access to materials and products must not only be raised to an ergonomic height but also tilted to clear an obstruction or reduce reaching and bending motions.  The Tilt Table can be combined with a Lift Table to provide even more flexibility and productivity.  Lift and tilt tables.

  • Makes parts easily reachable
  • Prevents back strain
  • Increases productivity.

TILT ANGLE
• 0-45 degrees (standard)

FRONT
retaining lip –
 8” high (standard)

SAFETY
• Velocity fuses on each
cylinder to eliminate the table from collapsing due to hose failure
• Hold down tabs on all four corners

LOWERED HEIGHT
• 9”


POWER SUPPLIES
A/C 110/1/60 volt  – Hand or foot operated
(standard)
A/C 220/460/575/3/60 – Hand or foot operated (optional)
Air/Hydraulic – Foot operated (standard),  Hand operated (optional)

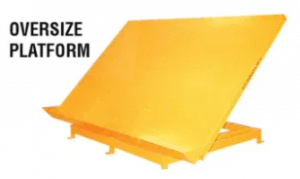

Oversized platform - tilt tablesSAFETY
• Bellow safety skirting

• Safety tape switch
• Retaining lip – larger or smaller
• Conveyor or ball transfer tops

OPTIONS
• Platforms: larger or
smaller
• Tilt Angle: increased or restricted
• Mounted on carousel

Tilt Tables - Model chart
