LIFT TABLES
Heavy Duty Series
8,000 to 12,000 lb capacity


    HEAVY DUTY LIFT TABLES


Econo Lift Heavy Duty Lift Table

8,000, 10,000 and 12,000 lb capacities

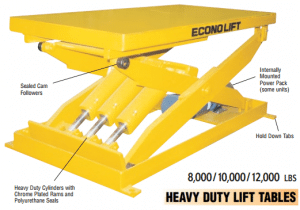

Heavy Duty Lift Table

The Econo Lift line of Heavy Duty Lift Tables are designed to raise and lower larger, heavier loads through relatively small distances. A recommended way to help reduce incidents of musculoskeletal disorders by correctly re-positioning work at a suitable height for operators.

  • Makes parts easily reachable
  • Prevents back strain
  • Increases productivity.

EconoLift-hd_lift_tables

LIFT TABLE PLATFORM SIZES
• 24” wide x 36” long to 72” wide x 96” long
BASE SIZES
• Standard 24”,36”,48” wide x 36”,48”,60”,72” long
TRAVEL
• 24”,36”,42”,48” vertical travel

LOWERED HEIGHT
• 7” & 9”

SAFETY
• Velocity fuse is standard on each cylinder

• Heavy duty hydraulic cylinders – chrome  plated rod with polyurethane seals

POWER SUPPLIES
A/C 110/1/60 volt (standard) Hand or foot operated

A/C 460/575/3/60 volt (opt.)  Hand or foot operated
Air/Hydraulic
    Foot operated (standard)

    Hand operated (optional)
• Internally mounted
• Easily accessible for maintenance or repair
• Motors – Single phase
1 h.p. and three phase
1-1/2 h.p. – hand or foot operated standard

MAINTENANCE
• Hinged table top provides easy access to power unit and cylinders

• Self lubricated bronze bushings on all wear points

OPTIONS
• Oversized platforms

• Beveled edges for pit mounting
• Eye-bolts for pit mounting
• Rotating tops
     – spring detents
     – manual detents
• Roller conveyor, Ball transfer tops
• Bellow safety skirting
• Safety tape switch
• Safety touch bars
• Semi-portable
• Portable
• Tandem lifts
• Double scissor lifts
