Lift Tables
Standard Series
2,000 to 6,000 capacity


LIFT TABLES


2,000, 3,000, 4,000, 5,000 and 6,000 lb scissor lift capacities


Econo Lift’s line of lift tables are designed to raise and lower large, heavy loads through relatively small distances. A recommended way to help reduce incidents of musculoskeletal disorders by correctly re-positioning work at a suitable height for operators. Lift tables lend themselves to being easily adapted for a specific use including pallet handling, vehicle loading and work positioning.

  • Makes parts easily reachable
  • Prevents back strain
  • Increases productivity.

Econo Lift Standard Scissor Lift


EconoLift-lift_tables-01

PLATFORM SIZES

• 24” wide x 36” long to 72” wide x 96” long
BASE SIZES
• Standard 24”,36”,48” wide x 36”,48”,60”,72” long
TRAVEL
• 24”,36”,42”,48” vertical travel

LOWERED HEIGHT
• 7” & 9”

SAFETY
• Velocity fuse is standard on each cylinder

• Heavy duty hydraulic cylinders – chrome plated rod with polyurethane seals



LIFT TABLE – POWER SUPPLY OPTIONS

A/C 110/1/60 volt (standard)  Hand or foot operated
A/C 460/575/3/60 volt (opt.)  Hand or foot operated
Air/Hydraulic Foot operated (standard), Hand operated (optional)
• Internally mounted
• Easily accessible for maintenance or repair
• Motors – Single phase 1 h.p. and three phase,  1-1/2 h.p. – hand or foot operated standard

MAINTENANCE

• Hinged table top provides easy access to power unit and  cylinders
• Self lubricated bronze bushings on all scissor lift wear points

OPTIONS

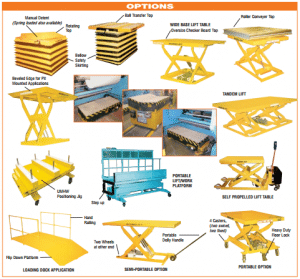

Econolift lift table options• Oversized platforms
• Beveled edges for pit mounting
• Eye-bolts for pit mounting
• Rotating tops
  – spring detents
  – manual detents
• Roller conveyor, Ball transfer tops
• Bellow safety skirting
• Safety tape switch
• Safety touch bars
• Semi-portable
• Portable scissor lift table
• Tandem scissor lift table
• Double scissor lift table




Standard 24″ Wide Base Lift Tables

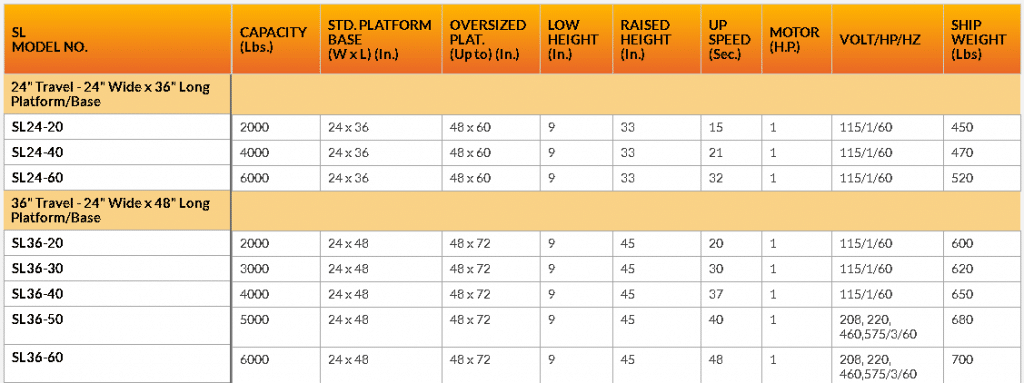

SL24-SL36 series lift table chart

SL42-SL48 series lift table chart

36″ Wide Base Lift Tables

3SL24-35 series lift table chart

3SL42-48 series lift table chart

48″ Wide Base Lift Tables

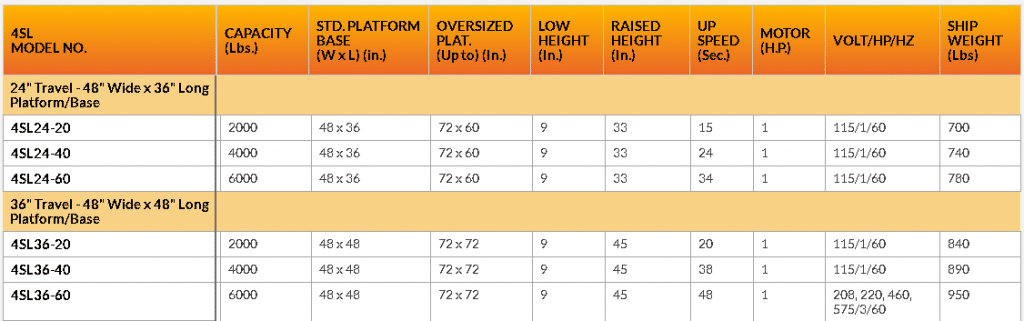

4SL 24-36 series lift table chart

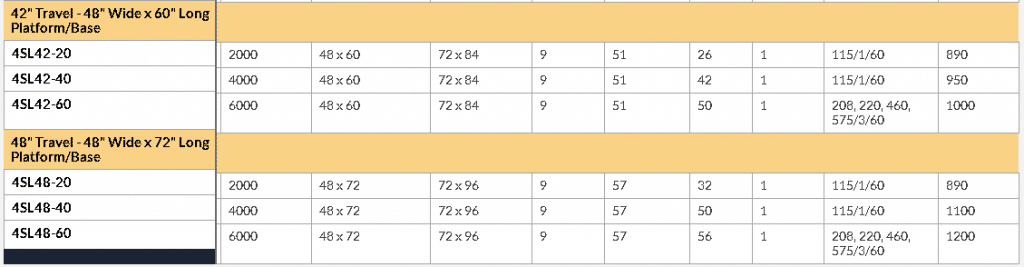

4SL42-48 series lift table chart





FOR MORE INFORMATION

TO REQUEST A QUOTE CONTACT LIFTWAY AT 1-800-543-8929 OR CLICK THE “Get Quote” BUTTON
