Rough Terrain ForkliftRT2D25-35 / RT4D25-355000 & 7,000 lb capacity
800

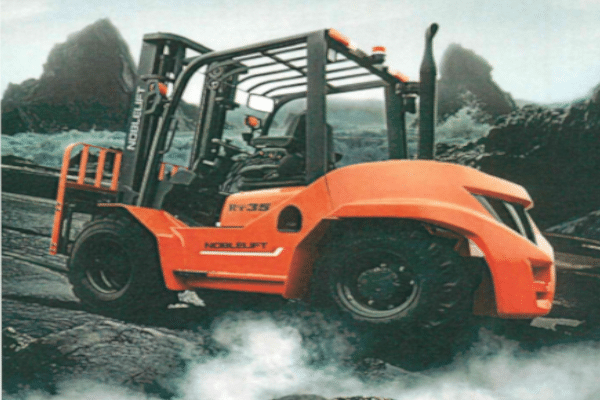

New Forklift –RT2D25-35 / RT4D25-35 – Rough Terrain Forklift
The RT Series 2WD & 4WD 2,500 to 3,500kg capacity pneumatic forklifts are highly efficient, durable Diesel Rough Terrain forklifts. They are designed to move high volumes and big loads reliably through the toughest terrain. The mast system, front/rear axles, chassis and overhead guard are engineered for extreme conditions.
Applications can include forestry, disturbed surface construction sites, oil refineries, military and agriculture. These high performance, low maintenance forklifts deliver improved productivity while ensuring operator comfort throughout the entire shift.
| STANDARD FEATURES: |
| Lift Capacity: 2.5T (5,000 lbs.) 3.5T (7,000 lbs.) |
| Engine- LS Mtron Diesel Turbo Engine (Korean) 4.0L 56HP- EPA Tier4 certified |
| Transmission- TCM Technology Hydraulic Trans 2 or4 Wheel Drive |
| Tires: Drive – Pneumatic – 12-16.5-12PR |
| Steer – Pneumatic – 27×10-12-12 PR (2WD) 10.0/75-15.3 (4WD Drive) |
| Turning Radius: 112.6″ (2WD )121.3″ (4WD) |
| Maximum gradebility-50% Full Load |
| Mast: 118” Standard |
| Load Center Distance: 24” |
| Tilt: 10°F/12°B |
| 2-Way Proportional Hydraulic Control Valve Standard |
| Fork: 48” Standard |
| Intelligent Monitoring System (IMS) Display Indicators |
| Operator Restraint System w/ Retractable Seat Belt |
| Operator Presence Sensing System |
| Draw Bar Pin |
| Tilt Steering Column |
| Small Diameter Steering Wheel with Spinner Knob |
| Reverse alarm |
| Comfort Package |
| Cylinder boots for tilt cylinder |
| Rear Hand grip with horn |
| USB connector |
| Left Right Rearview Mirrors |
| Rear work light |
This ergonomic sit-down forklift is equipped with On-demand Fully Hydrostatic Power Steering (FHPS), a deluxe suspension seat, pneumatic tires, Operator Presence System (OPS) and many safety features. Highly Productive – Competitively priced – One of the best values on the market.
“Diesel powered rough terrain forklift
Exceptional performance – Heavy Duty“
5,000 and 7,000 lb
SPECIFICATIONS 24″
| MODEL | FD2RT25 | FD2RT50 | FD4RT25 | FD4RT50 |
| Unit Type | 2WD – Diesel Rough Terrain | 2WD – Diesel Rough Terrain | 4WD – Diesel Rough Terrain | 4WD – Diesel Rough Terrain |
| Load Capacity | 5,000 lb | 7,000 lb | 5,000 lb | 7,000 lb |
| Load Center | 24″ | 24″ | 24″ | 24″ |
| Power | Diesel – 56 HP / 2,300 rpm | Diesel – 56 HP / 2,300 rpm | Diesel – 56 HP / 2,300 rpm | Diesel – 56 HP / 2,300 rpm |
| Tires | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Fork Dimensions | 42″ Standard | 42″ Standard | 42″ Standard | 42″ Standard |
| Std Lift Height | 118″ Standard | 118″ Standard | 118″ Standard | 118″ Standard |
| Collapsed Height | 81.5″ | 81.5″ | 81.5″ | 81.5″ |
| Mast Stages | 2 or 3 | 2 or 3 | 2 or 3 | 2 or 3 |
| Turning Radius | 112″ | 112″ | 121″ | 121″ |
